Technical Specifications:

Information includes international voltage, wattage and country availability.

All machines are recognized as Medical Device in Japan, Australia and Canada.

All machines approved and certified by international bodies such as TE and CUV - products conform to International Standards (ISO regulations).

Chi Machine - Far Infrared Hothouse DomeSOQI Bed

Electro Reflex Energizer - E-Power Machine

-
SDM-888
Sun Ancon Chi Machine


2 yr warranty - Canada
2 yr warranty - Australia, NZ, Europe, UK.
Known life expectancy 15-20 yrs.

Chi Machine Specifications:
Weight: 15.5 lb / 7 kg
Dimensions: 10.5" x 13.5" x 8.25"
33.7 cm x 30.2 cm x 21.2 cm

USA/Canada:120v - 60Hz - 28w
UK/Australia/Europe: 220 v - 50Hz - 35w

Swing Frequency: 140 oscillations/minute.
One speed only as designed by Dr. Inoue.
Swing Travel: 1.5 inches / 37mm
Wing Angle: 12 degrees.
Motor: 34-3 watt motor.
RPM: 1800/1500
Power Consumption: 28w

Self Timer: 2 to 30 minutes.
Begin at 4-6 mins. 1-2 mins if frail.
Do not exceed 20 mins max.
1-3 sessions per day.

Detailed Instructions.

Colors:White and Grey.

Serial Number: 76230612
'Chi Machine' Trademark Reg. No. 2 338 684.
'Sun Harmony' Trademark Reg. No. 2 087 528.

-
FIR Hothouse dome.

Far Infrared Hothouse Dome


1 yr warranty - Canada
1 yr warranty - Australia.
2 yr warranty - Europe.
Life expectancy 7-12 yrs.

FIR Hothouse Dome Specifications:
8-10 microns.
Weight: 13 lbs / 5.7 kgs
14.5" W - 26.3" L - 13.8" H
36.80 - 66.8 - 35.0 cm

Temp: Radiant plate temperature emits heat
at a constant and comfortable 107 to 110 F
 (41 to 43 C) - perceived temperature is
 much lower, feels like mid 70ís.

USA/Canada:120v - 60Hz - 330w
UK/Australia/Europe: 220 v - 50Hz - 350w

Extension stands: 6 1/2" each,
will raise height to 18"

There are 4 castors attached to the bottom
of the dome for easy movement.

Self Timer: 15 minute increments.
Begin with 15 mins.
60 minutes max recommended.
1-3 sessions per day.

Colors: White and Grey.

Grande Hothouse Dome
For larger bodies.
Canada - 110v
UK, Australia, NZ, Europe - 220v

Weight: 7.5 kg - 16.5 lb
L80.5 - W36.80 - H40.1 cm

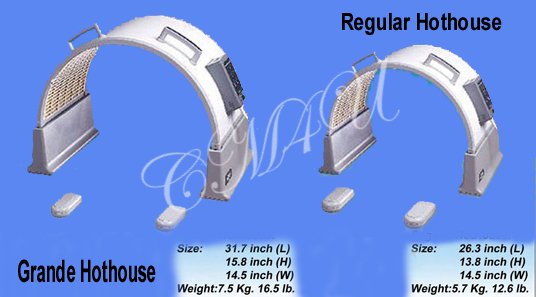

See image below for inches.

Serial Number: 76143307

-

-
Hothouse domes.
-
-
ERE machine

Electro Reflex Energizer
(ERE)

1 yr warranty - USA, Canada
Machine has dual voltage: 110-240v

Available in USA and Canada.
Can ship to Europe or Australia from USA.

Electro Reflex Energizer Specifications:
Weight: 7lbs / 3.1 kg
Size: 15.5" x 12.6" x 4.3"
39.2 x 32.0 x 11.0 cm

Self Timer: 5-30 mins max.
Begin with 5 min.
1-3 sessions per day.
4 Modes: Pounding, relaxing, massaging,
combination.

Heating element in each foot pad.
Portable, lightweight.
Remote control.
Six electro-pads included.

Serial Number: 76294426


E-power machine

E-Power Machine


1 yr warranty - USA, Canada
1 yr warranty - Australia.
2 yr warranty - Europe.
5 yr life expectancy with daily use.

6 month warranty on E-Power belt.

USA, Canada - 110v
Australia, Europe - 220v

E-Power Machine Specifications:
Weight: 7.6 lbs / 3.4kg
Size: 12.7 x 12.5 x 6.5
32.2x 31.75 x 16.51 cm
110v - 50/60hz - 18w + 20%

High Frequency: 70 KHz + 10%

High: 2500 + 100 V

Middle: 2300 + 100 V

Low: 1900 + 100 V

Negative Potential:

High: -1000 + 100 V

Middle: -800 + 100 V

Low: -600 + 100 V

Time Settings: 0, 30, 60, 90 mins.

Waist Belt: 49.6 x 5.9 inches
or 126 cm x 15 cm
Fits up to 45 inch waist - velcro closure.

-

-
-
SOQI Bed

SOQI Bed

High quality massage table - Face cradle.
3 Far Infrared Hothouse Domes.
1 Sun Ancon Chi Machine.
One remote control panel - Built in MP3 player.
Specially designed hinge and rail.
5 Hothouse insulation curtains - Bed skirt.
3 risers, 2 armrests - Storage rack.

Warranty:
Chi Machine: 2 yrs all countries.
FIR Hothouse Dome: 1 yr USA, Australia.
FIR Hothouse Dome: 2 yrs Europe.
SOQI Bed Control Panel: 6 months.

crest

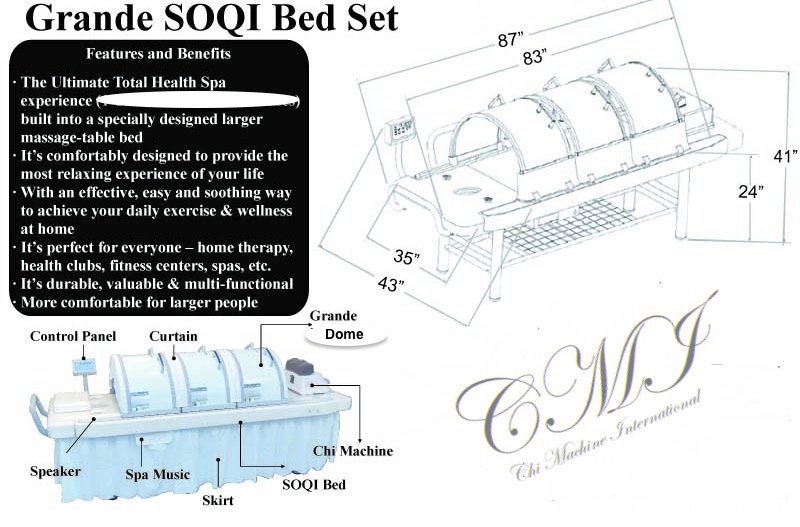

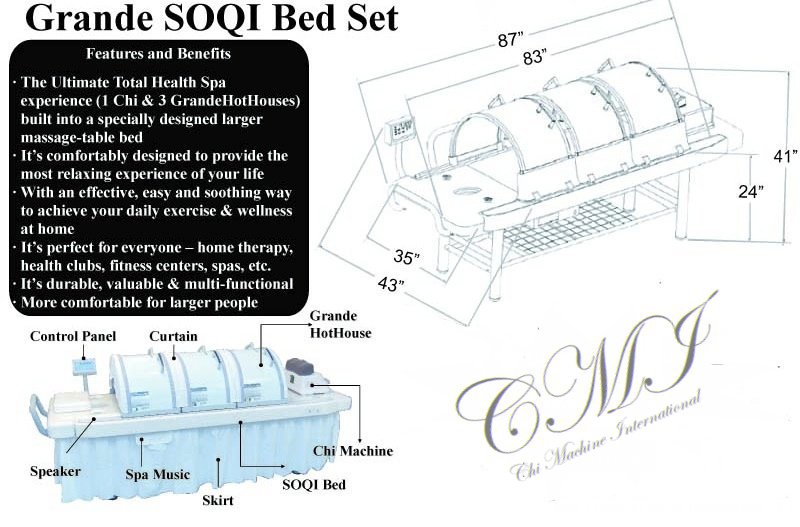

SOQI GRANDE BED:

Dimensions: L87" x W43" x H24"
Height is 41" including Hothouses.
(Table height is not adjustable)
Bed Weight: approx.184 lbs / 83 kg

Frequency: 50-60 Hz
Voltage: AC 100V-120V Canada.
220v Australia, Europe, UK.
Consumption: approx. 1000 Watts.


-

-
Grande SOQI bed
          specifications.
-

-

crest

WARRANTY
 on all other products:

FIR beltFIR Belt:  6 months. For back support, soreness, pain relief, posture.
FIR padFIR Pad:  6 months. Far Infrared heat, for minor aches, pains, soreness, relaxation, circulation, monthly pain.
FIR cushionFIR Lumbar Cushion1 year. Far Infrared massage for back support at home, work or driving.
PMPalm Massager:  6 months. Powerful hand held massager with heat.

-

-
